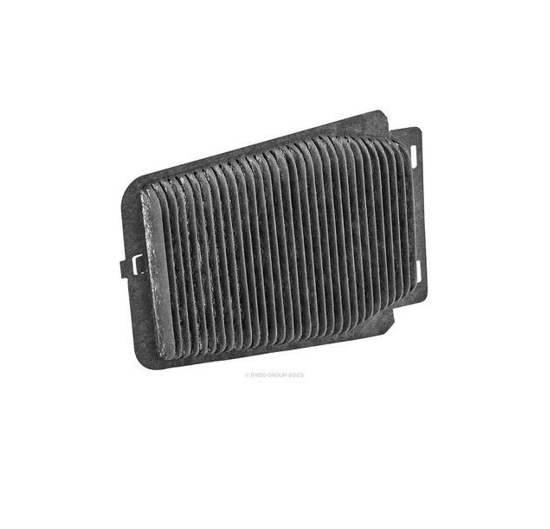

RYCO RBA101 Hybrid Battery Air Filter - Toyota CHR Prius

Ryco Battery Air Filters protect hybrid vehicle battery systems by filtering and removing dust and contaminants before entering the battery air cooling system, ensuring only clean cool air is supplied to the battery system

RBA101

Usually available 24 hours in-store after purchase

Features:

• Ensures the temperature of the battery is kept within tolerance by the vehicle's cooling system
• A high dust holding capacity prevents contaminants infiltrating the cooling system that cause a build-up of dust and contaminants that affect the cooling system's efficiency
• A flame retardant synthetic fibre media traps particles reducing the dust build-up in the battery air system, to prevent the battery pack overheating and damaging the battery system
• Recommended service interval as per the log book service schedule
• New Vehicle Warranty Protection

Specifications:

• Length : 184.50 mm
• Width : 126.70 mm
• Height : 14.50 mm
• Flame Retardant Media : Yes

Fitment Guide:

• Location : Drivers side, underneath rear passenger seat
• Installation Time : 15 min

Compatibility:

TOYOTA

> C-HR

• ZYX10R / ZYX11R — 1.8L 2ZR-FXE Hybrid DOHC 4cyl 90kW [from 12/2016]

> PRIUS ALPHA / PLUS / V / a ALPHA

• ZVW40W / ZVW41W — 1.8L 2ZR-FXE Hybrid DOHC 4cyl 100kW [from 05/2011] — ZVW40R series only

> PRIUS

• ZVW30 — 1.8L 2ZR-FXE Hybrid DOHC 4cyl 100kW [from 04/2009 to 06/2016]
• ZVW30 / ZVW35 Plug-in — 1.8L 2ZR-FXE Hybrid DOHC 4cyl 100kW [to 04/2016]
• ZVW50R / ZVW51 — 1.8L 2ZR-FXE Hybrid DOHC 4cyl 90kW [03/2015–01/2023]
• ZVW55 — 1.8L 2ZR-FXE Hybrid DOHC 4cyl 90kW [03/2015–05/2022]
