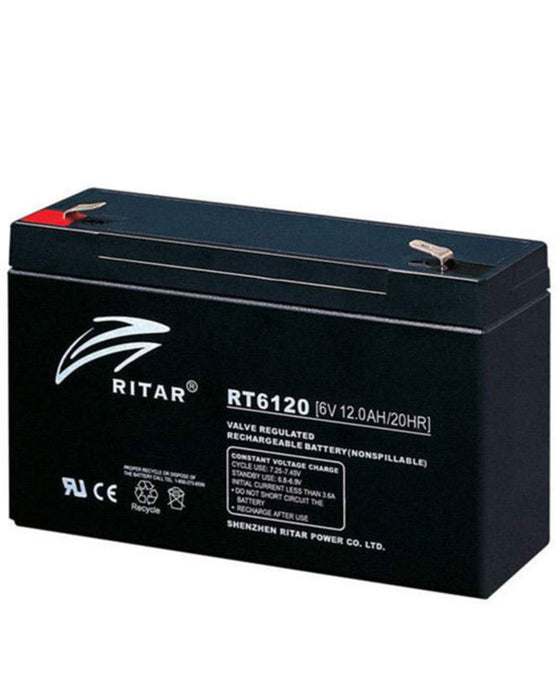

Ritar RT6120 6V 12Ah AGM Sealed Lead Acid Battery – SLA / VRLA Rechargeable Battery

The Ritar RT6120 6V 12Ah AGM battery is a reliable, maintenance-free sealed lead acid battery designed for standby and general-purpose applications including emergency lighting, security and alarm systems, UPS backup systems, medical equipment, electronic equipment, toys and other 6V battery applications.

Using AGM (Absorbent Glass Mat) VRLA technology, the RT6120 is completely sealed and maintenance-free under normal operating conditions, making it ideal for equipment requiring dependable backup or portable power.

Ritar's RT Series is designed for reliable standby performance, with a 6–8 year design life in float service under appropriate operating and charging conditions.

Key Features

• 6 Volt 12Ah capacity
• AGM / VRLA sealed lead acid construction
• Maintenance-free operation
• Rechargeable
• Low self-discharge
• Reliable high-rate discharge performance
• Compact battery design
• Suitable for standby and general-purpose applications
• Up to 6–8 years design life in float service
• Quality Ritar RT Series battery

Specifications

Brand: Ritar
Model: RT6120
Battery Type: AGM / VRLA / Sealed Lead Acid (SLA)
Nominal Voltage: 6V
Nominal Capacity: 12Ah (20-hour rate)
Cells: 3
Length: 150 mm
Width: 50 mm
Case Height: 93 mm
Overall Height: 99 mm
Weight: Approx. 1.8 kg
Terminal Type: F1 / F2 depending on configuration
Maximum Discharge Current: 120A (5 seconds)
Recommended Maximum Charging Current: 3.6A
Standby Charging Voltage: 6.85–6.95V @ 25°C
Cycle Charging Voltage: 7.30–7.40V @ 25°C
Design Life: 6–8 years in float service

Common Applications

The Ritar RT6120 is commonly suitable for:

• Emergency lighting
• Alarm and security systems
• UPS and backup power systems
• Medical equipment
• Electronic equipment
• Telecommunications equipment
• Portable lighting
• Toys and ride-on equipment
• Automatic gates and access-control equipment
• General 6V rechargeable battery replacement applications

Before Ordering

Please check the voltage, dimensions, terminal size and terminal position of your existing battery before ordering.

The RT6120 is a 6V battery. It should not be confused with similar-sized Ritar 12V batteries.

If you are unsure whether this battery is suitable for your equipment, contact Superstart Batteries NZ with the model number or specifications of your existing battery and we can help identify a suitable replacement.
