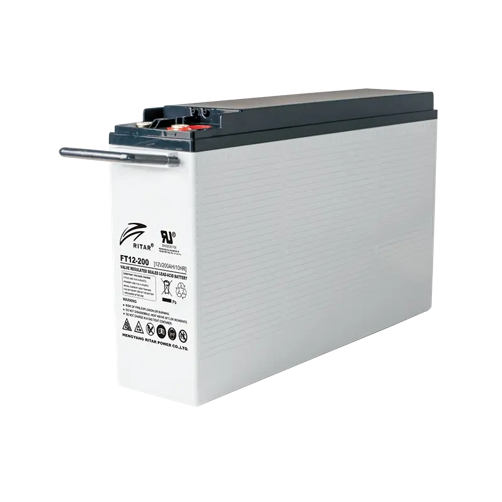

RITAR FT12-200 AGM Telecom Battery - 12V 200Ah

Special Order Item - Usually available 24 hours in-store after purchase

South Island orders may take more than 3 business days

Delivery: To nearest Mainfreight depot only.

FT(Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. By adopting a new AGM separator and centralized venting system, the battery can be installed in any position while maintaining high reliability. The dimensions of the FT series are designed for 19" and 23" cabinet installation. It is suitable for telecom EPS/EPS, applications.

Key Features:

• Long design life - 12 years
• Low self discharge
• Excellent high-rate performance for UPS/EPS control systems

Specifications:

• Voltage: 12V
• Capacity: 200Ah (C10) to 1.80V per cell @25℃
• Internal Resistance: 4.0 mΩ
• Maximum Discharge Current: 2000A (5 sec)

• Maximum Charging Current: 60A
• Reference Capacity :
  • C5 : 170Ah
  • C20: 212Ah

• Terminal: F14 (M8 bolts included)
• Dimensions (L x W x H) : 560 x 125 x 316mm
• Weight: 57.5 kg
• Warranty : 12-month warranty (Terms apply)
