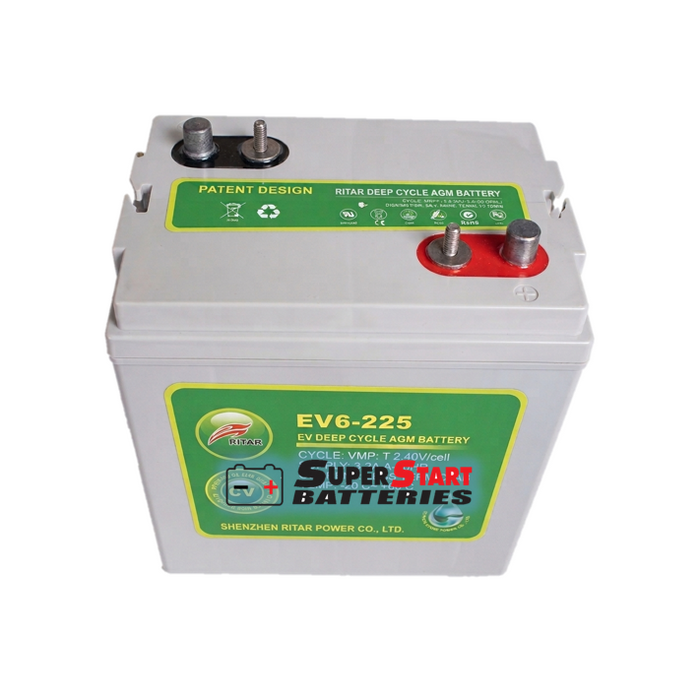

Ritar EV6-225H AGM Deep Cycle Battery - 6V 225Ah

Special Order Item - Usually available 24 hours in-store after purchase

South Island orders may take more than 3 business days

Delivery: To nearest Mainfreight depot only.

EV (Electric Vehicle ) series is specially designed for frequent discharge deep cycle application. By using the specially designed active material, strong grids and thick plate construction, the EV series battery offers reliable performance in high load situations and could provide competitive cycle performance. It is suitable for Electric Vehicle and Golf cart, Floor Machines, Forklifts, Aerial lifts, Robotics, Marine, RV, Mobility and Medical Equipment, and most outdoor application.

Key Features:

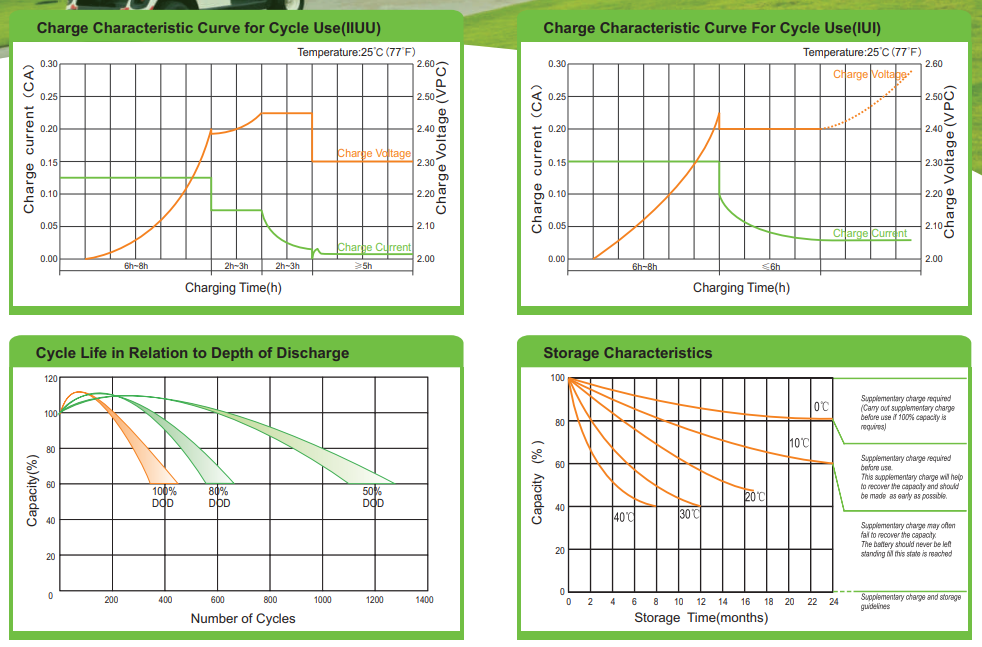

• Exceptional cycle life and recovery - 1200 cycles at 50% DoD
• Heavy-duty AGM sealed technology
• High Vibration & Shock Resistance
• Flexible mounting in any orientation (except inverted)
• Spill-Proof and Leak-Proof Construction


Specifications:

• Voltage: 6V
• Capacity: 225Ah
• Internal Resistance: 1.9 mΩ
• Cold Cranking Ampere (CCA): 1050A
• Maximum Charging Current: 67.5
• Reference Capacity :
  • C5 : 196.5Ah
  • C20: 238.0Ah

• Terminal: SAE Standard + threaded (M8) posts
• Dimensions (L x W x H) : 260 x 180 x 263 mm (Total height 282mm)
• Weight: 35.3 kg
• Warranty : 12-month warranty (Terms applpy)

Common Applications:

• Caravans & Motorhomes
• Campervans
• Marine & Boats
• Off-Grid Solar Systems
• Tiny Homes
• RV House Batteries
• Electric Mobility Equipment
• Backup Power Systems
• Golf Carts & Utility Vehicles
• Industrial Equipment
• Floor Cleaning Machines
• Remote Power Installations

• Robotics

Always confirm dimensions, terminal configuration, and battery compartment clearance before purchasing.

Compatibility:

Replaces R22, R220, R220U, R232, PR220, GC2-6V, T105, T-105, T-125, T125, DC6V6V225, CR225, CR220, CR235, CY220-6, T605, CR232, UBGC2
