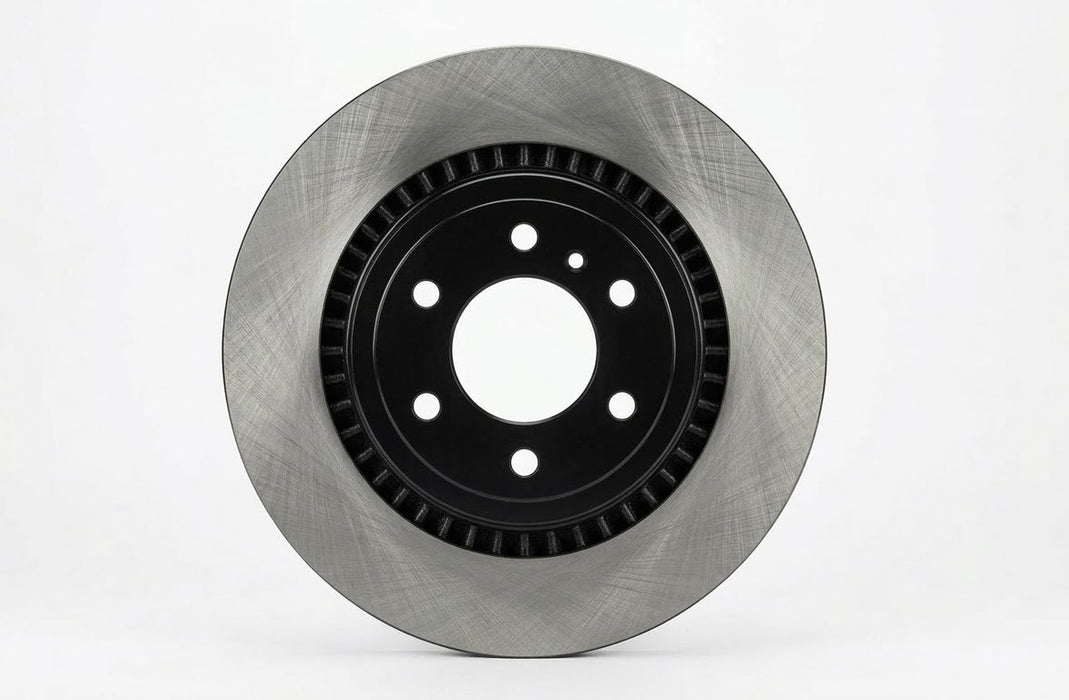

RDA Front Brake Rotor Toyota Grand Hiace RDA8664
Description RDA Brakes Standard Disc Brake Rotor Vented 284.7mm
Warranty 12 Months 20000kms
Centre Hole Diameter 100.1mm
Minimum Thickness 26mm
Type Vented
Height 48.5mm
Diameter 284.7mm
Item Type Disc Brake Rotor
Material Type CAST IRON
Thickness 28mm
Pack Qty 1
Number of Stud Holes 6
Pitch Circle Diameter 127mm
Centre Hole 100.1
Brake Disc Type Vented
Brake Disc Thickness 28
Centering Diameter 100.1
Weight 7.87kg
Features
• Black Anti-Rust Corrosion Resistant Coating
• Ready to fit out of the box - No oil coating
• CNC Machined & Non-directional Ground Finish
• Heat Tempered for Optimal Durability
• Symmetric Vane Casting for Thermal Efficiency & Weight Distribution
• ECE 1 R90 Approved for vehicles within ECE
Please note that this is a special order item and is typically available after 24 hours.
Suits:
| VEHICLE | TOYOTA GRAND HIACE VCH22K 3.4L 5VZ-FE Petrol Van RWD [07/99 - 01/05] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA GRAND HIACE VCH28K 3.4L 5VZ-FE Petrol Van AWD [07/99 - 01/05] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA GRANVIA VCH28K 3.4L 5VZ-FE Petrol Van AWD [07/99 - 01/05] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA GRANVIA,HIACE REGIUS KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW MPV AWD [08/95 - 12/02] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA GRANVIA,HIACE REGIUS KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV AWD [08/95 - 05/02] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA GRANVIA,HIACE REGIUS VCH16 3.4L 5VZ-FE DOHC 24v Petrol V6 140kW MPV AWD [08/97 - 12/04] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA GRANVIA,HIACE REGIUS VCH16,VCH28 3.4L 5VZ-FE DOHC 24v Petrol V6 132kW MPV AWD [08/97 - 05/02] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE KZH106,KZH116,KZH126 IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus AWD [08/93 - 08/04] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE LH109,LH119 IV D 2.8L 3L SOHC 8v Diesel 4cyl 61kW Van AWD [08/89 - 07/98] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE LH129 2.8L 3L Diesel Van AWD [08/89 - 08/98] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE LH168V IV D 3.0L 5L SOHC 8v Diesel 4cyl 67kW Van AWD [08/98 - 07/04] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE LH178 3.0L 5L Diesel Van AWD [08/98 - 08/04] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE LH188 3.0L 5L Diesel Van AWD [08/98 - 08/04] | DISC BRAKE ROTOR FRONT | 2 | |
| VEHICLE | TOYOTA HIACE,REGIUS ACE RCH47 IV 2.7L 3RZ-FE DOHC 16v Petrol 4cyl 105kW Bus AWD [04/97 - 12/02] | DISC BRAKE ROTOR FRONT | 2 |
