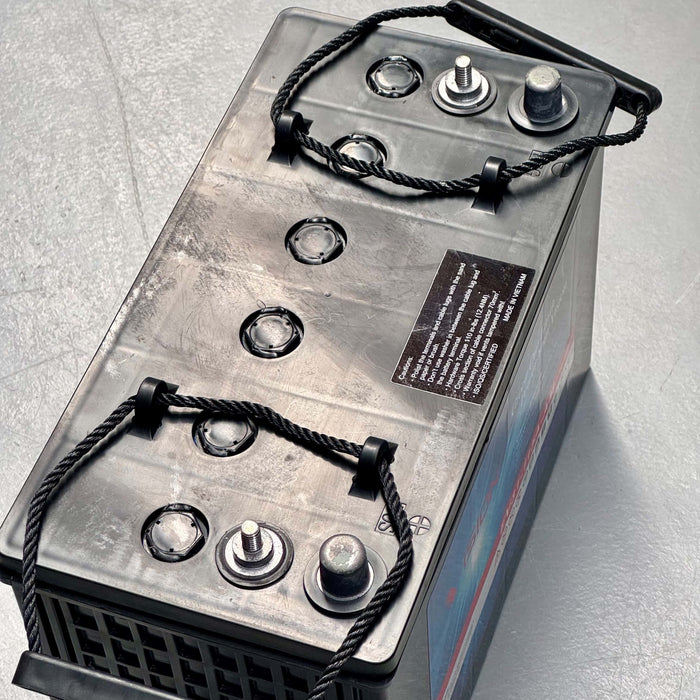

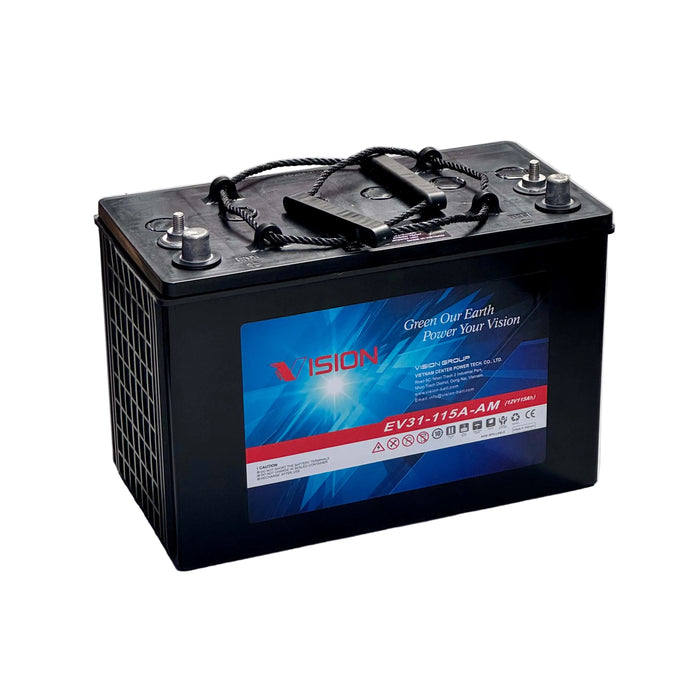

Vision EV31-115A-AM Deep Cycle SLA AGM Battery - 12V 115Ah

Vision EV Series Batteries provide superior performance, capacities and reliability. Using state of art maintenance-free(VRLA) construction the EV series is designed for environmentally sensitive areas that require enhanced cycle life capabilities in commercial, industrial, residential, and private applications.

Limited stock available - please call to confirm

Features:

• Completely sealed valve regulated construction.

• Computer-aided 99.994% pure heavy-duty lead calcium grid designs.

• Wide range of operating temperatures (-40°C to 60°C).

• Low self discharge rates (Approx. 1%-3% monthly at 20°C–25°C).

• Exceptional cycle life (About 1200 cycles at 50%)

• Multi-terminal options.

• Compatible with sensitive electronic equipment.

• Quality Assurance processes with ISO (4400/992579), QS and TUV Certification EMC tested, CE, ETTS Germany (G4M19906-9202-E-16). UL recognized and approved components (MH25860).
• Tellcordia and Bellcore compliant.



Specifications:

• Model: EV31-115A-AM
• Case size: 31
• Nominal Voltage: 12V
• Nominal Capacity (20HR): 115 Ah
• Reserve capacity:

  • At 25A: 228 minutes

• Resistance: 3.9 mOhms
• Cold Cranking Amps -18℃: 750

• Self Discharge: <3%/Month

• Maximum charge current: 34.5A

• Dimensions (mm):
  • Length: 330
  • Width: 169
  • Height: 216 (236mm including terminals' height)
• Weight: 33.6 kg
• Terminal type: M8

• Warranty: 12 months (No warranty applies if a single battery is replaced in an existing battery bank)

Compatibility:

Replaces D31A, G31DTU, EV31A-A, C12-120XDA, DEL-12V76G, AT121000DS and other 31 case size deep cycle SLA VRLA batteries.

Common applications:

• Solar and Renewable Energy Storage
• Electric Vehicle and Golf cart
• Industrial equipment
• Floor Machines
• Forklifts
• Aerial lifts
• Robotics
• Marine
• RV
• Mobility and Medical Equipment
• Telecom
• Broadband and Cable TV
• UPS systems
