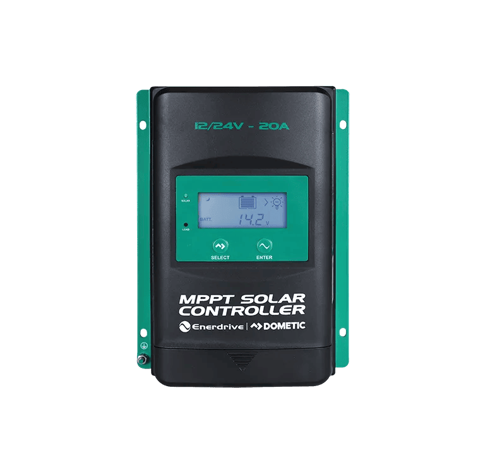

Enerdrive MPPT Solar Controller 12/24V 20A

The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method

EN43520

Usually available 24 hours in-store after purchase

Features:

• CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
• LCD display

• Maximum DC/DC transfer efficiency is as high as 98.3%.
• Wide MPP operating voltage range
• Support lead-acid and lithium batteries
• Real-time energy statistics function

• Multiple load work modes
• Comprehensive electronic protection
• IP33 Ingress protection
• Comms port included for future applications
• 5-year warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications

Specifications:

• Nominal Voltage Range: 12/24VDC Auto Select ¹
• Battery Voltage Range: 8 ~ 32V
• Maximum Battery Current Output: 20A
• Maximum Load Current Output: 20A
• Maximum PV Open Circuit Voltage:
  • 100V ²
  • 92V ³
• MPPT Voltage Range: (Battery Voltage + 2V) – 72V
• Maximum PV Array Power Recommended:
  • 300W (12V)
  • 600W (24V)
• Maximum PV Array Power Allowed (Overdrive):
  • 360W (12V)
  • 720W (24V)
• Efficiency (Maximum): 98.30%
• Self Consumption:
  • ≤30mA (12V)
  • ≤16mA (24V)
• Temperature Compensation Coefficient ⁴: -3mV/°C/12V (Default)
• Grounding: Common Negative
• RS485 Interface: 5VDC / 200mA (RJ45)
• LCD Backlight Timeout: Default: 60s (Range: 0~999s) (OS = backlight always ON)

ENVIRONMENTAL PARAMETERS

• Environmental Temperature ⁵: -25°C ~ +50°C
• Storage Temperature Range: -20°C ~ +70°C
• Relative Humidity: ≤95%, non-condensing
• IP Rating: IP33

MECHANICAL PARAMETERS

• Dimensions (L × W × H): 217 × 158 × 56.5 mm
• Mounting Hole Dimensions: 160 × 149 mm
• Mounting Hole Size: Ø5mm
• Maximum Cable Size (Input/Output): 10AWG (6mm²)
• Recommended Cable Size (Input/Output): 10AWG (6mm²)
