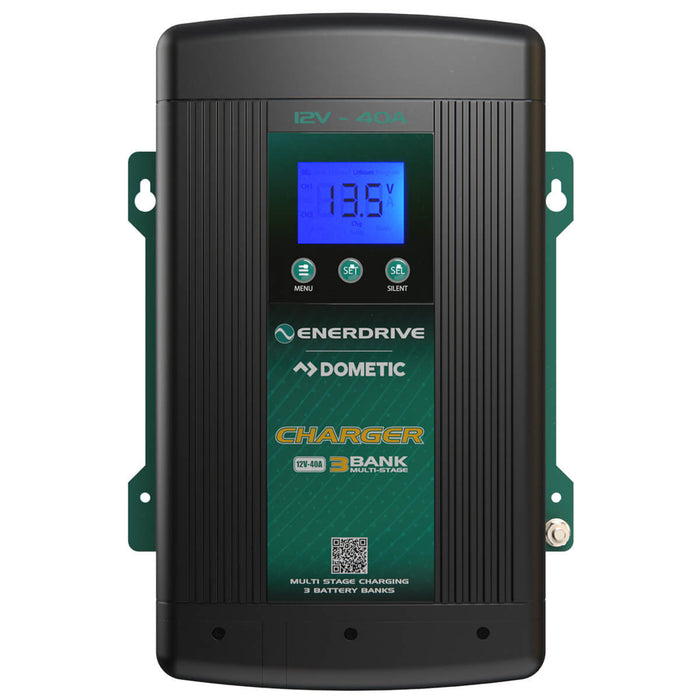

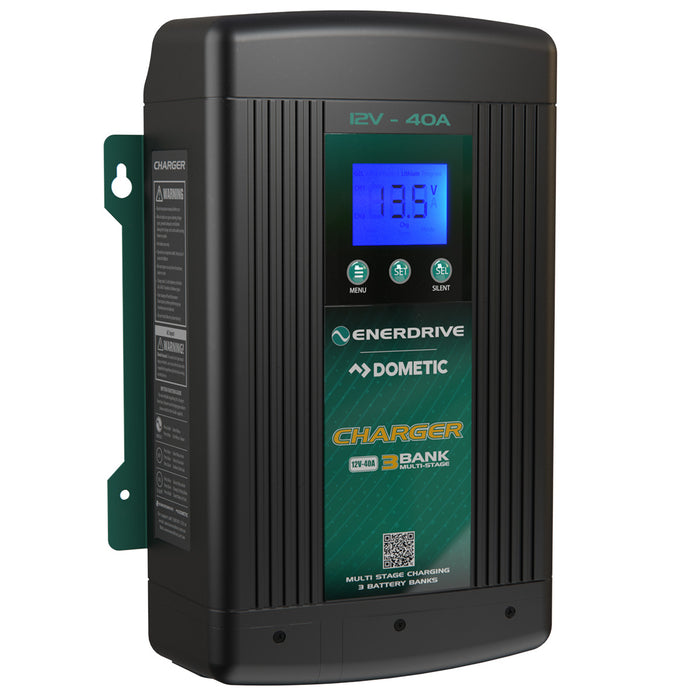

Enerdrive ePOWER Multi-banks Smart Charger - 12V 40A

The Enerdrive 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

EN31240 - LITHIUM BATTERIES COMPATIBLE

Usually available 24 hours in-store after purchase

Features:

• Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
• Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
• Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
• Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
• Smart Charging: It regulates its output based on the loads connected to your battery banks.
• Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
• LED Display: Easy to use “set and select” menu along with scrolling charger status.
• Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
• Temperature Sensor: Battery temperature sensor included with 3 meter cable.

• 5 Year Warranty




Specifications:

• Output Current (Maximum): 40A
• OUTPUT VOLTAGE RANGE – Charge: 14.2–15.5 V
• OUTPUT VOLTAGE RANGE – Float: 13.4–13.8 V
• OUTPUT VOLTAGE RANGE – Equalize: 16.0 V
• Charging Control: Four stages (Bulk/Absorption/Float/Maintenance)
• Charging Control: Two stages (Bulk/Absorption)
• Charging Control: Constant Power Supply (Program setting)

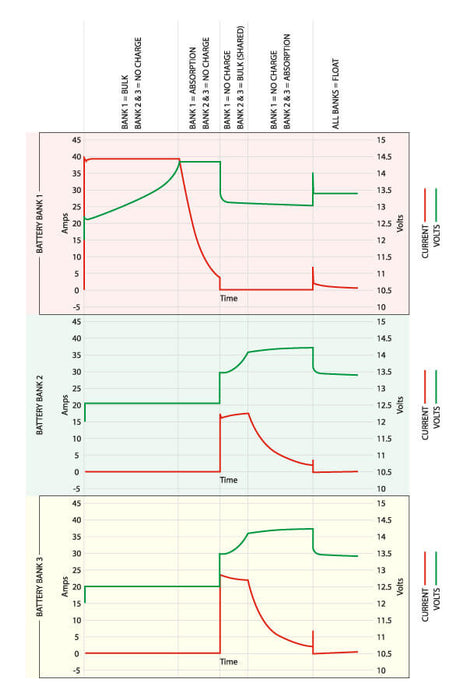

• Charging Control: Priority Battery Bank Charging

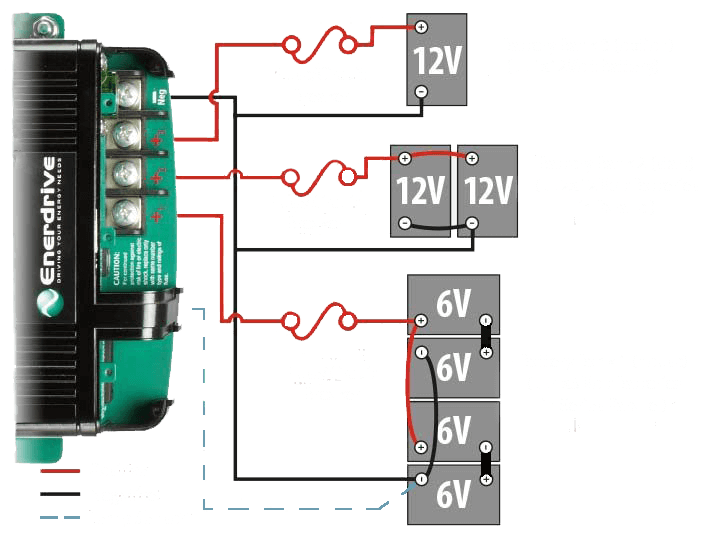

• DC Output Bank: Three (1 fully independent, 2 common with diode isolation)
• Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program (Flooded Default)
• Standby Current: < 2 mA

• CHARGER INPUT – AC Input Voltage (Nominal): 90 to 265 VAC
• AC Input Operating Range: 207–265 VAC (3.8 A Max)
• AC Input Operating Range: 90–125 VAC (7.7 A Max)
• AC Input Frequency Range: 47–63 Hz
• Power Consumption: 700W (Full Load)
• Power Factor Correction: Yes
• Charger Efficiency: > 82%

• PROTECTION AND FEATURES – Reverse Polarity: Yes (with user-replaceable fuse/s)
• Over Charge: Yes, unit shutdown
• Over Temperature: Yes, unit de-rated and shutdown
• Output Short Circuit: Protected, charger shutdown
• Cooling: Forced air ventilation (thermo-controlled fan)
• Temperature Setting: Hot, Normal, Cold (no sensor connected)
• Battery Temp Sensor Port: RJ12 (standard temp sensor supplied)

• DISPLAY – LCD Display (backlit): Charging status, Battery Voltage, Output Current & Fault Codes
• AC INPUT AND DC OUTPUT CONNECTION – AC Input: IEC with 1.2m power lead supplied

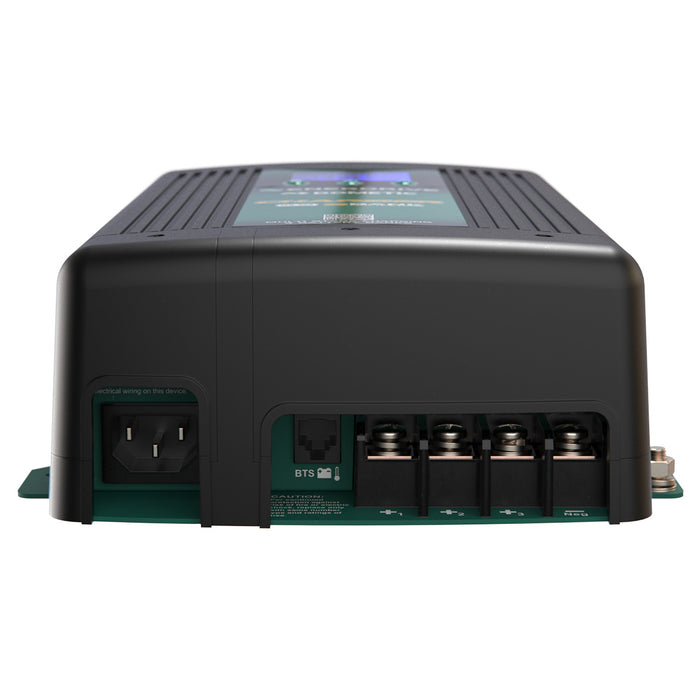

• DC Output Connection: Heavy-duty terminal (3 banks) – Pan Heads 6mm Thread
• DC Output Ground: Single heavy-duty common ground stud

• ENVIRONMENTAL & OPERATING TEMPERATURE – Storage: -40° to 70°C
• Operating: -20° to 60°C
• Humidity: 5–95% RH, non-condensing
• Ingress Protection: IP32 (basic drip-proof in vertical orientation)

• Base Unit Weight: 2.6 kg
• Base Unit Dimensions (L × W × H): 295 x 206 x 86 mm
• Optional Accessories: Remote Digital Display (Enerdrive Part No. EN3REM)
• Regulatory Compliance: AS/NZS 60335.2.29 (including Australian deviations)
