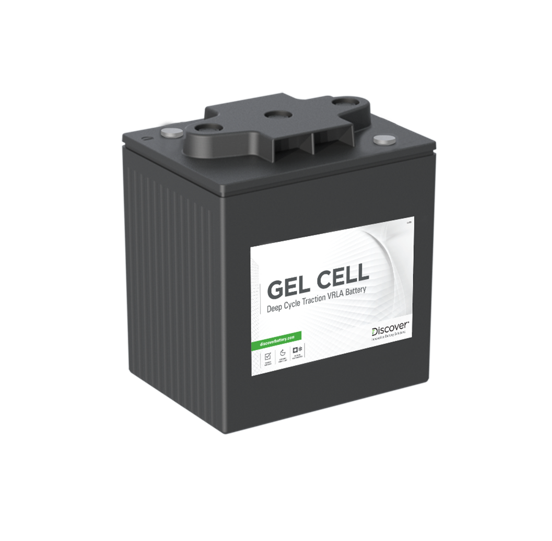

Discover EV506G-180 Deep Cycle Gel Battery - 6V 210Ah

Discover® GEL CELL Traction Industrial batteries incorporate a "true Gel" traction formula that meets aftermarket replacement and original equipment battery requirements. With a long history of safety, reliability, the batteries deliver exceptional longevity even under Partial State of Charge (PSOC) operation and high temperature conditions.

GEL CELL batteries outperform flooded and AGM batteries in deep discharge recovery making them ideal for demanding energy storage applications.

Usually available within 24 hours - Please call to check availability

Delivery: To nearest Mainfreight depot only.

Key Features:

• ENHANCED ALLOYS - thick plates with graphite enhanced alloys
• CARBON BOOST - increase duty cycle performance & charge acceptance
• AUTOMATED THROUGH-THE-PARTITION WELD - supports higher current loads
• POLYPROPYLENE CASE - integrated flame arrestors prevent fire and explosion
• OEM TRUSTED - exceeds OEM specifications
• EXTENDED SERVICE LIFE - 600+ cycles 70% DoD / 450+ cycles 100% DoD


Product Details:

• Model: EV506G-180
• Voltage: 6V
• Capacity (20HR): 210 AH
• Discharge Time:
  • At 25A: 475 minutes
  • At 75A: 120 minutes
  • At 100A: 85 minutes
• Additional Rates:
  • 5 Hr Rate: 180 AH
  • 20 Hr Rate: 210 AH

• Dimensions (mm):
  • Length: 244
  • Width: 189
  • Height: 271 (including terminals' height)
• Weight: 31.5 kg
• Warranty: 12 months (No warranty applies if a single battery is replaced in an existing battery bank)

Applications:

• Golf carts
• Cleaning machines
• Forklifts
• Motorhomes
• Solar energy systems

Compatibility:

• DC224-6, R22, R220, R220U, R232, PR220, GC2-6V, T105, T-105, T-125, T125, DC6V6V225, CR225, CR220, CR235, CY220-6, T605, CR232, UBGC2
• Suitable for Trojan T-105, Century C105 6V deep cycle batteries
