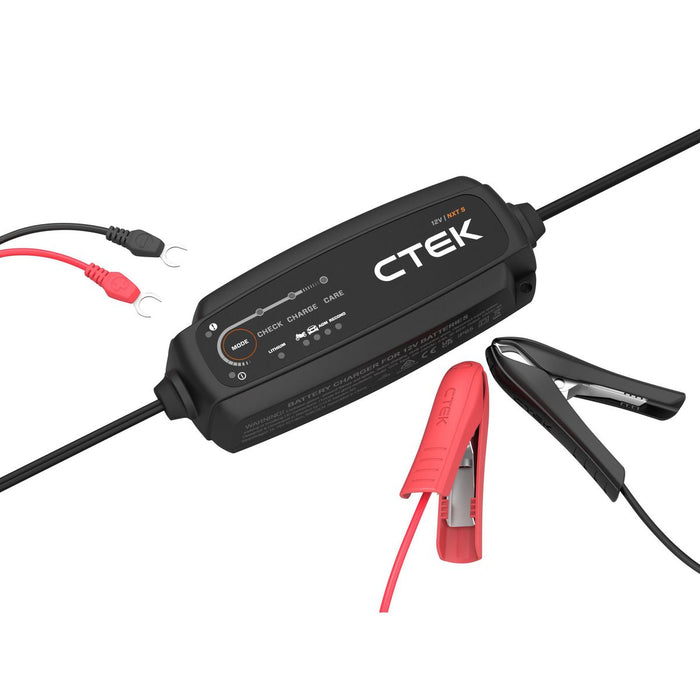

CTEK NXT 5 Compact AGM Lithium Battery Charger - 12V 5A
The NXT 5 is a smart battery charger for 12V lead acid and lithium-ion batteries. Compact, robust and equipped with advanced technology, it offers flawless performance, safety and ease of use. With patented features like reconditioning modes and automatic temperature compensation, it’s built to perform.
Special Order Item - Usually available in 24 hours (North Island only)
Features:
- One charger for all 12V battery types, including lithium
- Built with durable cables that stay flexible in winter
- Ideal for mid-range cars, bikes and boats
- Revives flat batteries and extends battery life
Specifications:
- Input : 220–240 VAC, 50–60 Hz, 0.6 A
- Output : 14.4/14.7/15.8 V, 5.0 A
- Charger Type : 8 Step, Fully Automatic Charging Cycle
- Battery Types 12 V : Wet, MF, CA/CA, AGM, EFB, Gel, LiFePO4
- Battery Capacity : 1.2–160 Ah
- Start Voltage : 2.0 V
- Back Current Drain* : Corresponding to Less Than 1 Ah/Month
- Ripple** Less Than 4 %
- Power Source : 220 V -> 12 V
- Battery Voltage : 12 V
- Ambient Operating Temperature : -20 ˚c to +50 ˚c
- Temperature Compensation : Built-In compensation of charging voltage based on ambient temperature.
- Battery Chemistry : Lead Acid, Lithium-Ion
- Degree Of Protection : IP65
- Net Weight (Unit with Cables) : 0.6 kg
- Warranty : 5 Years
*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
