Conrad Meier Battery Charger 12V 2.5A (UPGRADED) - Powertrain

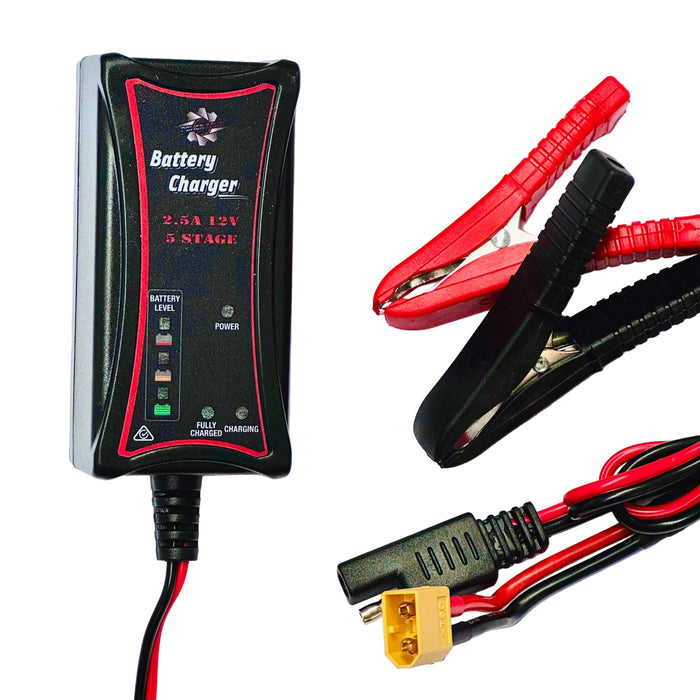

Powertrain 12V 2.5A 5-Stage Smart Battery Trickle Charger

This 2.5A charger supersedes the older version 1.6A

The PTC12V2.5A fully auto 5-stage smart charger is designed to effectively charge most 12V automotive battery types including lead acid, calcium, GEL and AGM. The battery charger will switch to float or monitor mode when the battery charger is fully charged. Maintaining the battery voltage at optimum level and eliminating the possibility of overcharging.

The PTC12V2.5A charger uses unique pulse algorithm for the charging cycle, this helps reduce oxidation on the battery plates and evens the consistency of the electrolyte, minimising temperature while charging.

Features:

• Charges from Zero Volts.
• Fully automatic 5-stage charging.
• Float stage pulse charging increases battery life and maintains battery at optimum voltage.
• Can be left connected to battery without the risk of overcharging.
• Switch Mode Technology that provides current voltage to suit all lead acid batteries.
• Reverse polarity, short circuit protection, over temperature, overload and over voltage protection.

Specifications:

• Model Number: PTC-12V2.5A
• Output Current: 2.5A
• Output Voltage (Nominal): 12V
• Input Voltage: 230-240v AC 50Hz
• Battery Types: Gel, Lead Acid, Calcium and AGM (no Lithium)
• Charge Stages: 5 stages. Soft start, Boost, Absorption, Battery test, Float
• Battery Range (Maintain): up to 100ah

• Warranty: 5 years
