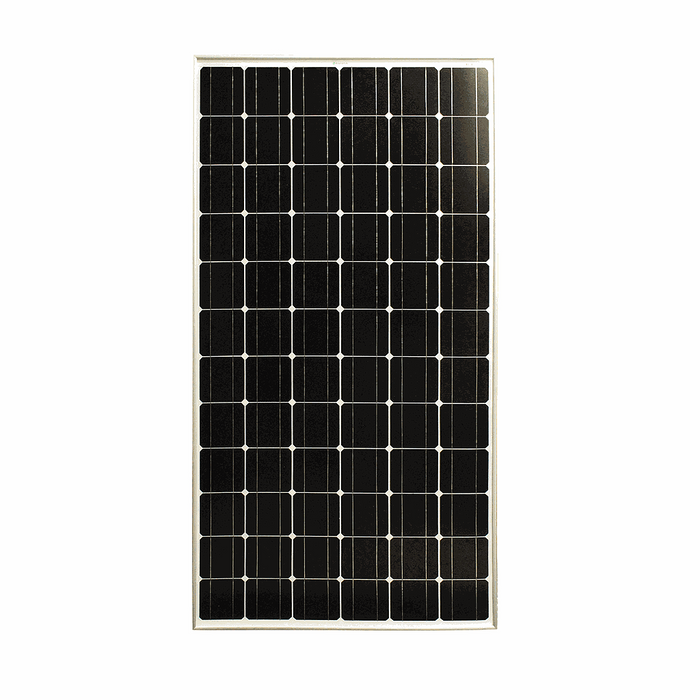

Enerdrive Monocrystalline Solar Panel 24V 200W

Enerdrive 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).

SP-EN200W-24V

Usually available 24 hours in-store after purchase

Features:

• High Conversion Efficiency
• Positive Tolerance

• High PID Resistant

• Current Sorting Process
• Extended Wind and Snow Load tests

• Withstanding Harsh Environment

• 5-year warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications
• Off-grid systems

Specifications:

• Max Power Pm (W): 200
• Power Tolerance: - 1% ~ + 3%
• Max Power Voltage Vm (V): 37.30
• Max Power Current Im (A): 5.37
• Open Circuit Voltage Voc (V): 43.7
• Short Circuit Current Isc (A): 6.05
• Max System Voltage (VDC): 1000
• Number of Cells: 72 (6 × 12)
• Frame: Anodized aluminium alloy
• Junction Box: IP67 rated
• Dimensions (mm): 1580 x 808 x 40
• Weight (kg): 15
• Test Conditions: 1000 W/m², AM1.5, 25°C

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996.
