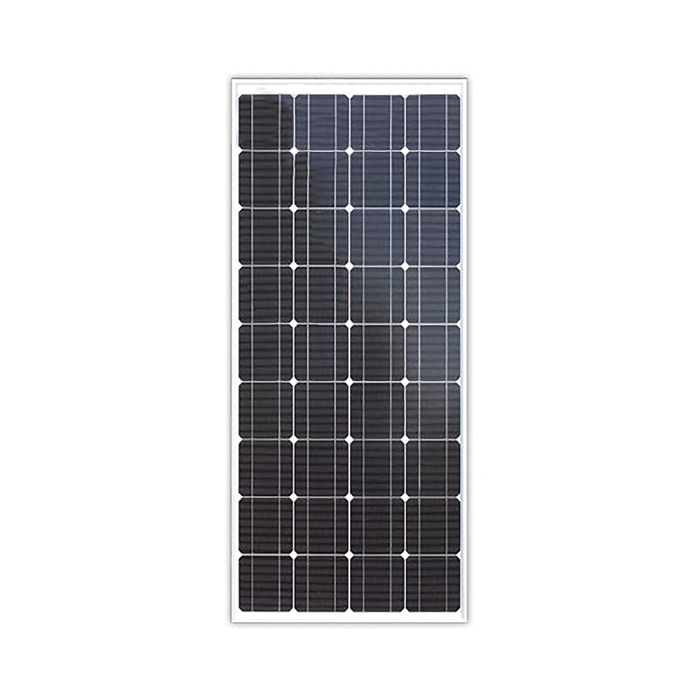

Enerdrive Monocrystalline Solar Panel 100W - Silver Frame

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). MC4 compatible solar cable connectors included.

SP-EN100W

Usually available 24 hours in-store after purchase

Features:

• High Conversion Efficiency
• Positive Tolerance

• High PID Resistant

• Current Sorting Process
• Extended Wind and Snow Load tests

• Withstanding Harsh Environment

• 5-year warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications
• Off-grid systems

Specifications:

• Max Power Pm (W): 100
• Power Tolerance: -1% ∼ ±5%
• Max Power Voltage Vm (V): 18.70
• Max Power Current Im (A): 5.35
• Open Circuit Voltage Voc (V): 22.60
• Short Circuit Current Isc (A): 5.69
• Max System Voltage (VDC): 1000
• Number of Cells: 36 (4 × 9)
• Frame: Anodized aluminium alloy
• Junction Box: IP67 rated
• Dimensions (mm): 1195 x 541 x 35
• Weight (kg): 8.1
• Test Conditions: 1000 W/m², AM1.5, 25°C

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996.
