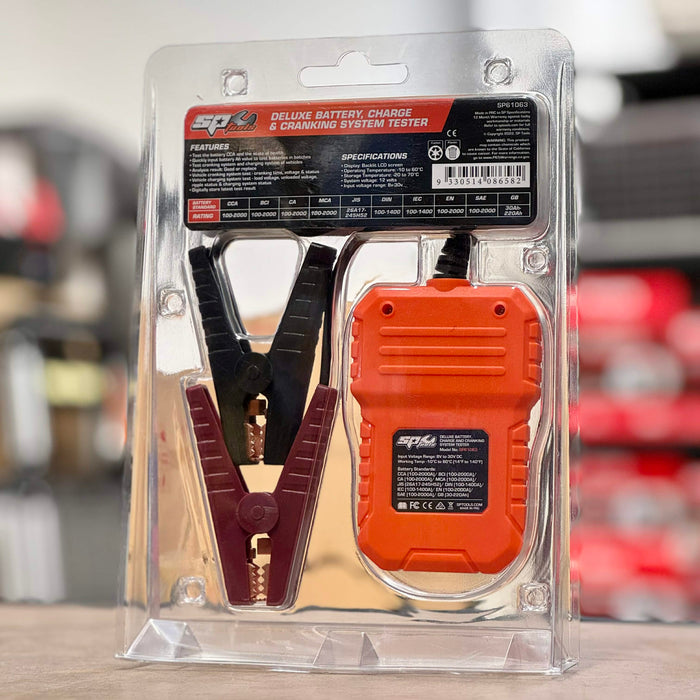

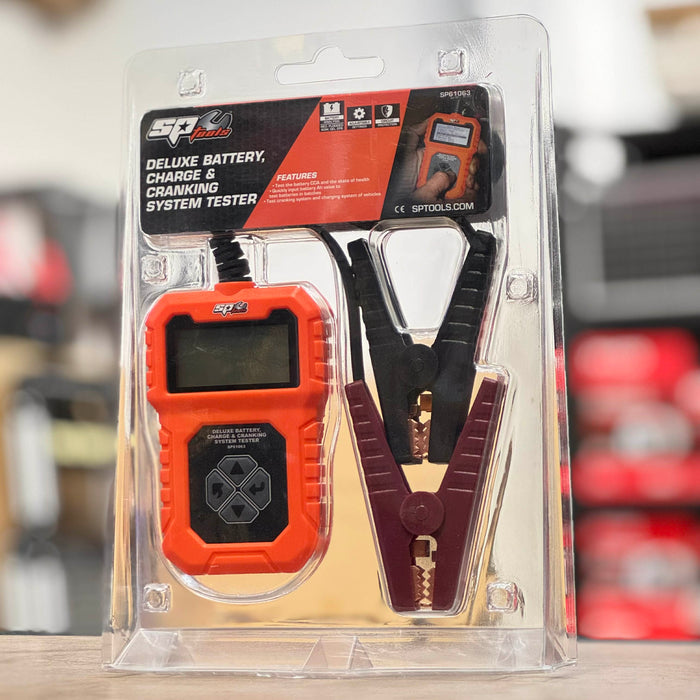

SP Tools 12V Battery Charge Cranking System Tester - SP61063

SP Tools SP61063 tests battery CCA and state of health, with quick Ah input for batch testing. It also checks vehicle cranking and charging systems safely.

Displays clear “Good” or “Replace” results, supports multiple standards, and includes short circuit and reverse connection protection. Results can be stored digitally and printed from a PC

Superseded SP61062

Features:

• Test the battery CCA and the state of health
• Quickly input battery Ah value to test batteries in batches
• Test cranking system and charging system of vehicles with out damaging the battery performance
• Analysis result: Good or replace
• Built-in protection of short circuit and reverse connection
• Test results based on CA, CCA, BCI, MCA, JIS, SAE, EN, GB, DIN & IEC standards
• Multilingual interfaces
• Vehicle cranking system test - cranking time, voltage & status
• Vehicle charging system test - load voltage, unloaded voltage, ripple status & charging system status
• Digitally store most recent test result - print from PC

Specifications:

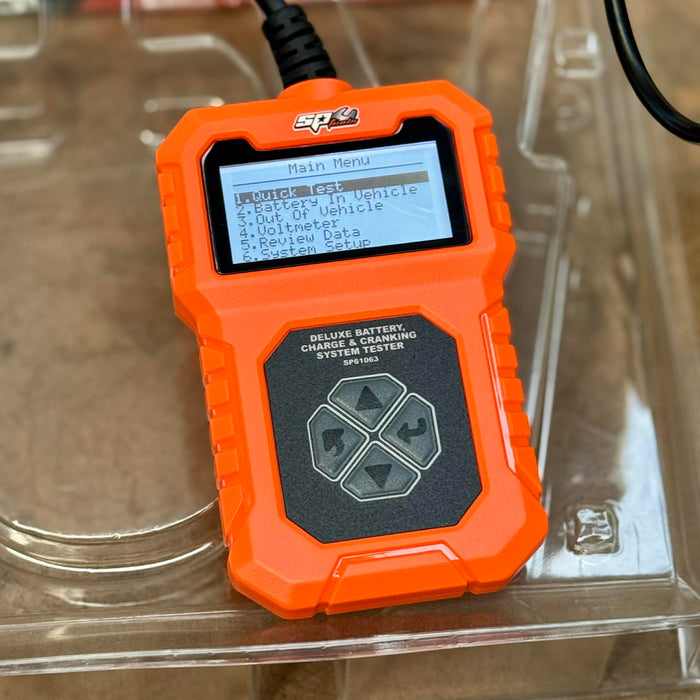

• Display: Backlit LCD screen
• Battery tech support: Lead acid, EFB, GEL and AGM (not Lithium compatible)
• Operating Temperature: -10 to 60°C
• Storage Temperature: -20 to 70°C
• System voltage: 12 volts
• Input voltage range: 8v-30v
• Warranty: 12 months
