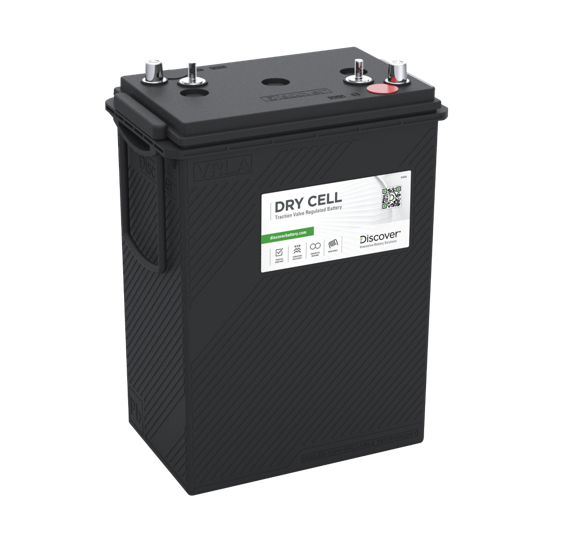

Discover EVL16A-A Deep Cycle AGM Battery - 6V 390Ah

Discover® DRY CELL Traction Industrial batteries outperform traditional Flooded, AGM, and Gel deep-cycle batteries in demanding traction and industrial applications. The batteries are designed to deliver a long runtime, high operating current and withstand deep discharge and are ideal for powering equipment that is used multiple times a day.

DRY CELL Traction Industrial batteries have been used and trusted for more than ten years by the world’s largest industrial Original Equipment Manufacturers. Specific charge algorithms are available that support optimal battery performance and longevity.

Usually available within 24 hours - Please call to check availability

Delivery: To nearest Mainfreight depot only.

Key Features:

• HYDRO POLYMER - resist dry-out and prevent thermal runaway
• ENHANCED ALLOYS - thick plates with graphite enhanced alloys
• CARBON BOOST - increase duty cycle performance & charge acceptance
• AUTOMATED THROUGH-THE-PARTITION WELD - supports higher current loads
• POLYPROPYLENE CASE - integrated flame arrestors prevent fire and explosion
• AGM TECH - non spillable
• EXTENDED SERVICE LIFE - 550+ cycles 70% DoD / 350+ cycles 100% DoD


Product Details:

• Model: EVL16A-A
• Voltage: 6V
• Capacity (20HR): 390 AH
• Discharge Time:
  • At 25A: 915 minutes
  • At 75A: 265 minutes
  • At 100A: 190 minutes
• Additional Rates:
  • 5 Hr Rate: 340 AH
  • 20 Hr Rate: 390 AH

• Dimensions (mm):
  • Length: 295
  • Width: 180
  • Height: 403 (including terminals' height)
• Weight: 53 kg
• Warranty: 12 months (No warranty applies if a single battery is replaced in an existing battery bank)

Applications:

• Golf carts
• Cleaning machines
• Forklifts
• Motorhomes

Compatibility:

• Replaces DC400-6, Trojan L16G-AC, Trojan J305H-AC, US BATTERY US305HCXC2
