Enerdrive 12V 400W Pure Sine Wave Inverter

With a state of the art, easy to use design, this 400W inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.

EN1104S

Usually available 24 hours in-store after purchase

Features:

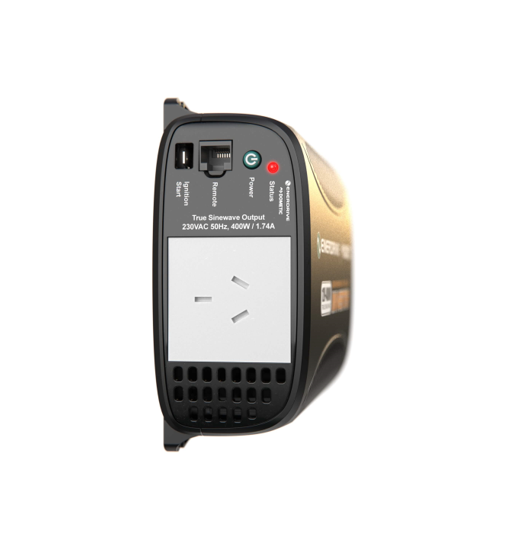

• Australian/NZ GPO Outlets
• True sine wave output is ideal for operating motor loads

• Automatic shutdown protects overload, over temperature and low/high battery conditions
• High surge capacity for products that require more power to start (2 x constant)
• High efficiency conversion of battery available power to AC power
• Mounting brackets for permanent installation

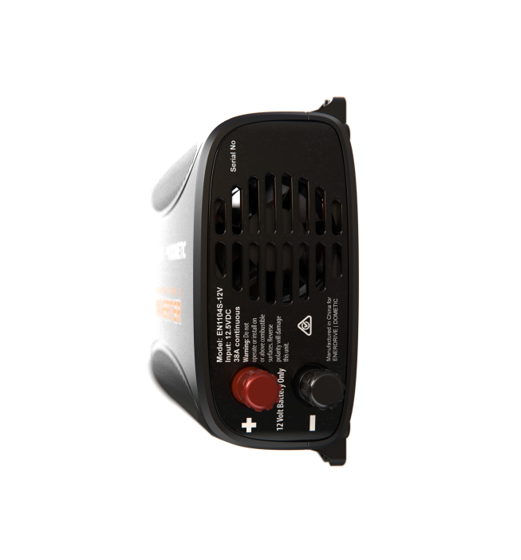

• Heavy duty DC battery stud connectors
• Includes 5V USB port

• 2-year warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications
• Off-grid systems

Specifications:

• AC Output Power: 400W
• AC Output Current: 1.74A
• AC Output Voltage: 230 VAC / 50 Hz
• AC Surge Power (Peak): 800W
• AC Output Waveform: Sinewave (<3% THD)
• Nominal DC Input Voltage: 12.5 VDC
• No Load battery draw: < 0.8 ADC
• DC Input Voltage operating range: 10.5 – 15.5 VDC
• Under Voltage Alarm: 11.2 VDC

• Under Voltage Shutdown: 10.5 VDC
• Under Voltage Shutdown Recovery: 11.8 VDC
• Over Voltage Shutdown: 15.5 VDC
• USB Port: 5V, 1A
• Transfer Time:  < 30 ms
• Transfer Relay Rating:  16A (resistive load)
• AC Input socket IEC-C20:  16A max
• AC Output socket IEC-C19:  16A max
• AC Output Front GPO: 10A max
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5 - 90% non-condensing
• Operating Altitude: Up to 3000 meters above sea level
• Weight: 1.7 kg
• Dimensions (W x L x H): 177 x 200 x 90mm
• Warranty: 2 Years

Load – Consumption – Estimated Run Time

• Cordless Phone: 5W – 80 hrs
• Clock/Radio: 8W – 65 hrs
• Table Lamp:
  • 40W – 22 hrs
  • 60W – 15 hrs
• Freezer (8.8 cu. ft.): 80W – 12 hrs
• 20″ LCD TV: 100W – 10.5 hrs
• Refrigerator (18 cu. ft.): 120W – 8.3 hrs

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996.
