OEX Alternator 12V 180A Bosch Style for BMW 335i N54 - Superstart Batteries

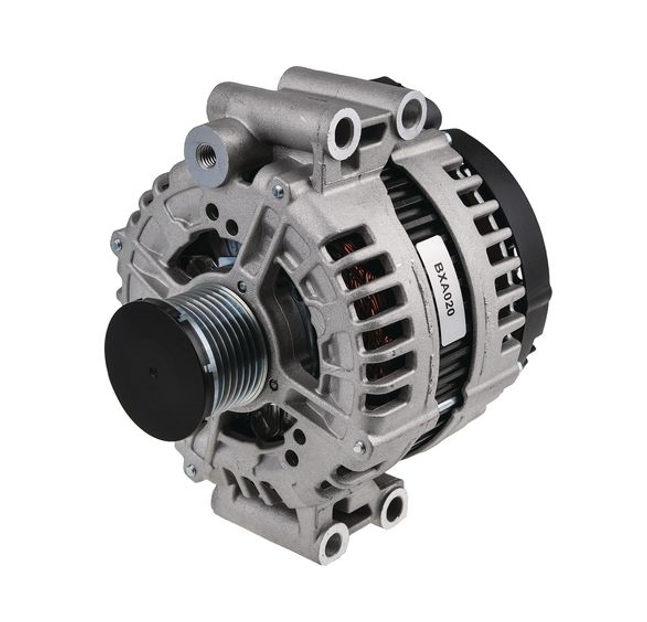

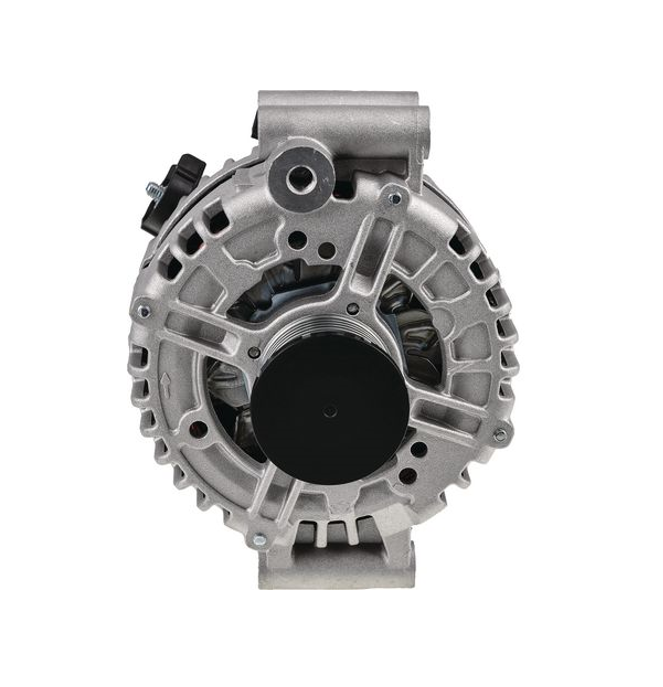

OEX Alternator 12V 180A Bosch Style for BMW 335i N54

Save $70.00 Save $70.00
$669.00
$669.00 - $669.00
$669.00
$599.00
$599.00 - $599.00
$599.00

OEX Alternator 12V 110A Bosch Style - BXA020

Usually available 24 hours in-store after purchase



Features:

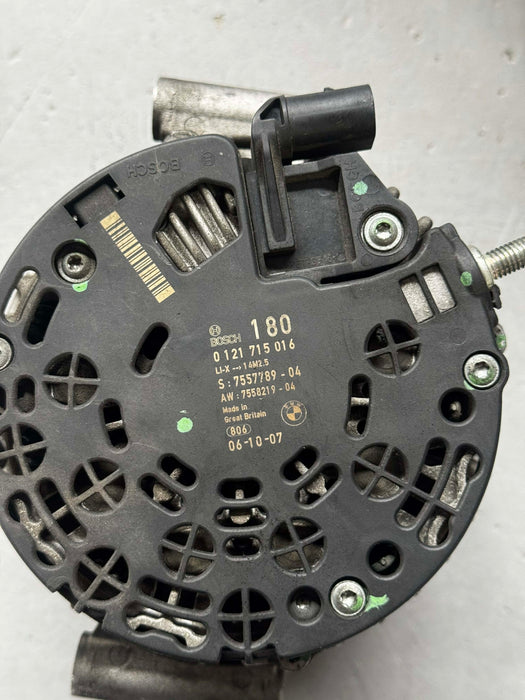

  • Direct equivalent to 0 121 715 016 Bosch Alternator
  • The OEX brand is sourced from market leading Original Equipment Manufacturers and Aftermarket Suppliers
  • OEX products are sourced from factories that are ISO9001 certified to support stringent engineering, testing and quality control procedures

  • 3 years warranty


Specifications:

  • Adjusting Hole Diameter: 10
  • Mount Leg Thickness: 62.5mm

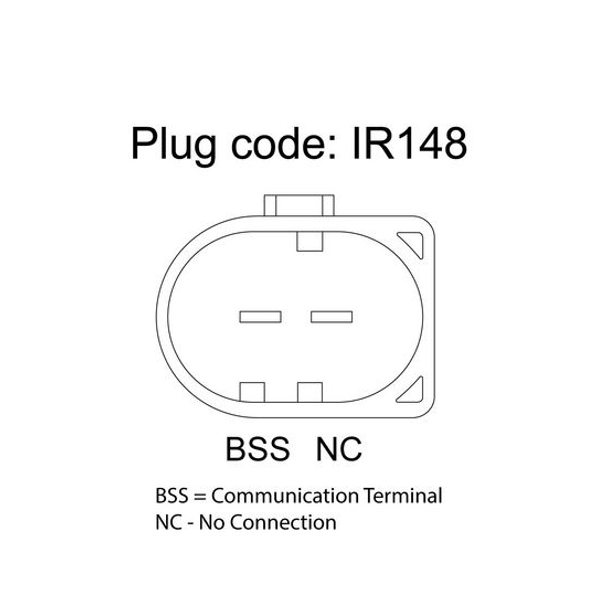

  • Pin Code: IR148
  • Power Rating (Amp): 180
  • Pulley Outside Diameter: 49mm
  • Pulley Section: 7 Groove
  • Regulator Type: Internal
  • Suits Unit Make: Bosch
  • Voltage: 12
  • Note: Unit fitted with clutch-style pulley
  • Alternator Mount: Pad
  • Mount Centre-to-Centre: 174mm
  • New / Reman: New
  • Weight: 7.38kg



    Compatible with:

    • BMW 1 Series (E82 / E88)
      • E82 135i — 3.0L N55 / N54 DOHC Turbo 225kW [2007–2013]
      • E82 M — 3.0L N54 DOHC Turbo 250kW [2011–2012]
      • E88 135i — 3.0L N55 / N54 DOHC Turbo 225kW [2008–2013]

    • BMW 3 Series (E90 / E91 / E92 / E93 / F31)
      • E90 325d — 3.0L M57 D30 Turbo Diesel 145kW [2006–2010]
      • E90 330d — 3.0L N57 D30 Turbo Diesel 180kW [2008–2011]
      • E90 335d — 3.0L M57 D30 Turbo Diesel 210kW [2006–2011]
      • E90 335i — 3.0L N55 / N54 DOHC Turbo 225kW [2006–2011]
      • E90 335xi — 3.0L N54 DOHC Turbo 224kW [2006–2008]
      • E91 335d — 3.0L M57 D30 Turbo Diesel 210kW [2006–2012]
      • E91 335i — 3.0L N55 / N54 DOHC Turbo 225kW [2006–2012]
      • E92 335i — 3.0L N55 / N54 DOHC Turbo 225–240kW [2006–2013]
      • E92 335xi — 3.0L N54 DOHC Turbo 240kW [2007–2010]
      • E93 335i — 3.0L N55 / N54 DOHC Turbo 225–240kW [2006–2013]
      • F31 330d — 3.0L N57 D30 Turbo Diesel 190kW [2013–2019]
    • BMW 6 Series (F06 / F12 / F13)
      • F06 640d — 3.0L N57 D30 Turbo Diesel 230kW [2012–2018]
      • F12 640i — 3.0L N55 DOHC Turbo 235kW [2011–2018]
      • F13 640d — 3.0L N57 D30 Turbo Diesel 230kW [2011–2017]
    • BMW X5 (E70 / F15 / F85)
      • E70 M50d — 3.0L N57 D30 Turbo Diesel 280kW [2011–2013]
      • E70 xDrive40d — 3.0L N57 D30 Turbo Diesel 225kW [2010–2013]
      • F15 / F85 M50d — 3.0L N57 D30 Turbo Diesel 280kW [2013–2018]
      • F15 / F85 xDrive30d — 3.0L N57 D30 Turbo Diesel 190kW [2013–2018]
      • F15 / F85 xDrive40d — 3.0L N57 D30 Turbo Diesel 230kW [2013–2018]
    • BMW X6 (E71 / E72 / F16 / F86)
      • E71 / E72 M50d — 3.0L N57 D30 Turbo Diesel 280kW [2011–2014]
      • E71 / E72 xDrive40d — 3.0L N57 D30 Turbo Diesel 225kW [2009–2014]
      • F16 / F86 M50d — 3.0L N57 D30 Turbo Diesel 280kW [2014–2019]
    • BMW Z4 (E89)
      • E89 sDrive35i — 3.0L N54 DOHC Turbo 225kW [2009–2016]
      • E89 sDrive35is — 3.0L N54 DOHC Turbo 250kW [2010–2016]

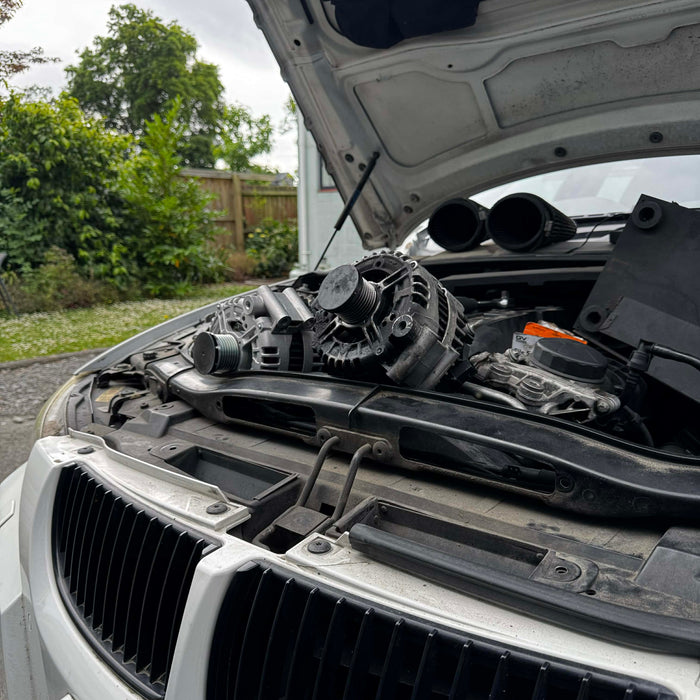

    Replacement service can be arrange (in Christchurch only) - appointment required
