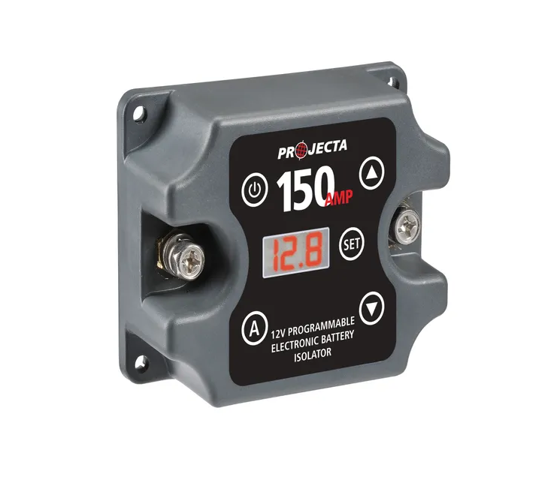

Projecta Programmable Electronic Battery Isolator 150A 12/24V - VSR150

The Projecta name is built on a heritage which began in 1989 and today Projecta is recognised as Australasia's market leader in high quality battery maintenance and battery power products.

VSR150

A programmable voltage sensitive isolator suitable for dual battery systems in any large 4WD, caravan or marine application. Suitable for both 12 volt and 24 volt vehicles

Functions:

• Factory default settings will allow the unit to engage when the main start battery reaches a voltage of 13.3Volts. The isolator will disconnect when the start battery reaches 12.8Volts, with a delay of 10 seconds.

• Programmable voltages: (optional)

• The unit is completely programmable to suit your vehicle's voltage requirements.

• Once installed, the isolator will allow you to 'SET' both the Cut-In voltage and the Cut-Out Voltage

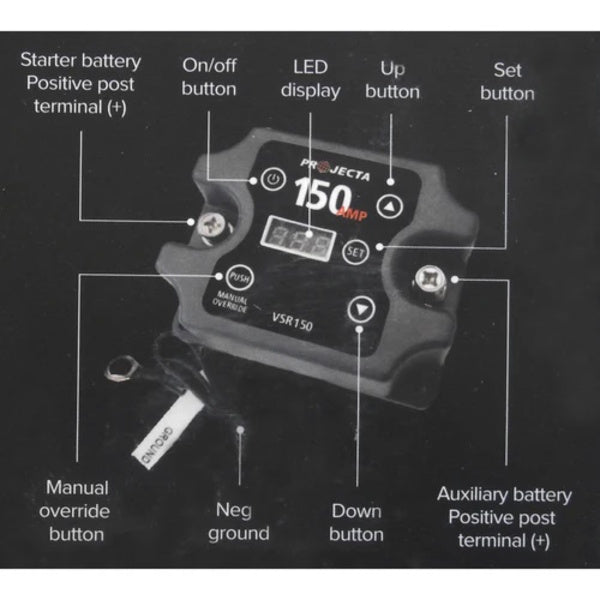

• Manual OVERRIDE function:

  • If the starter battery is flat and the aux battery is charged, the battery isolator ca be used to connect both batteries to allow for jump starting.

  • Press and hold the PUSH on the unit for 3 seconds, the LED display will show the combined voltage and the VSR150 will be in override mode for 60 seconds


  • Crank the engine. Once the engine has started the unit will automatically cancel the override function and return to the automatic charging function.

Specifications:

• Part no.: VSR150
• Voltage: 12V
• Charging current: 125A continuous, 150A peak
• Cut-in voltage: 13.3V
• Cut-out voltage: 12.8V
• Cut-out delay: 10 seconds
• Minimum operating voltage: One battery above 8V
• Charge type: Parallel
• Control: MCU

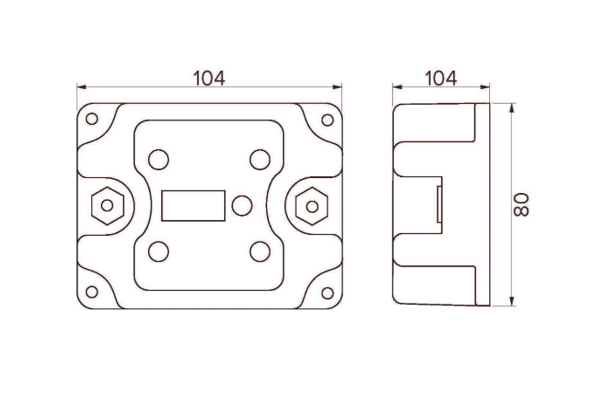

• Mounting: Surface/firewall/battery side
• Current draw: Charging 300mA (standby 5mA)
• Surge protection: Built-in
• Approval: EMC
