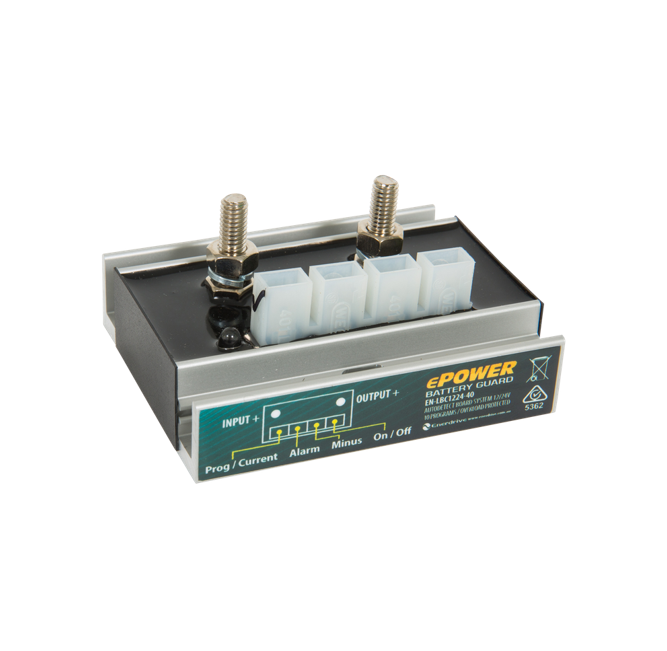

Enerdrive Smart Battery Guard 12/24V 40A

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power.

These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).

EN-LBC1224-40

Usually available 24 hours in-store after purchase

Features:

• Overvoltage Protection
• Ignition proof (no relay, no spark)
• Delayed alarm output
• Delayed load disconnect
• Microprocessor controlled - 10 different programs
• IP66 weather-resistant

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications

Specifications:

• Cable diameter: 10mm2
• Automatic detection of 12V or 24V system:
  • 8 - 20V → 12V mode
  • 20 - 35V → 24V mode
• Adjustable under voltage programs: 10
• Over voltage disconnect voltage:
  • 12V mode → 16V
  • 24V mode → 32V
• Maximum load / shutdown : approx. 40A - 45A
• Surge: 120A
• Voltage drop: 0.1V @ 40A
• Current consumption
  • Output active: 4mA
  • Output inactive: 2mA
• Shutdown at overload / short circuit: After 5 seconds. (Switch on again 1 minute)
• Voltage accuracy: 2%
• Current accuracy: 20%
• IP-code: IP66
• Dimensions (H x W x D): 82 x 41 x 65mm
• Weight: 185g

• Warranty: 12 months

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996.
