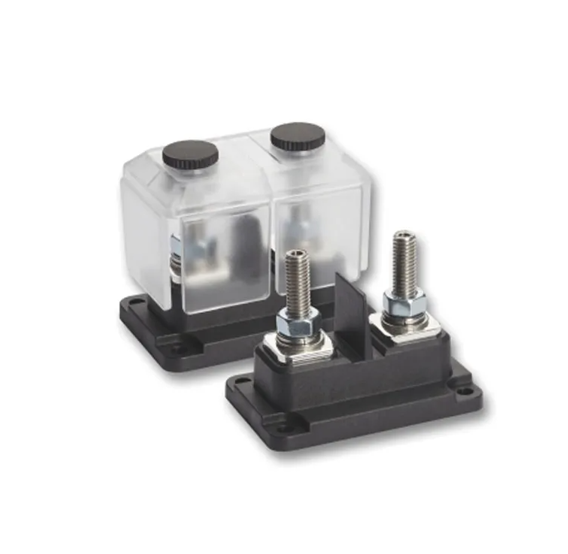

Enerdrive Dual Insulated Stud M8

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members. The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

DCM-5072160

Usually available 24 hours in-store after purchase

Features:

• Stainless steel studs, nuts and washers
• Special fiber reinforced base material
• Unique grid optimized footprints
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts
• Top sides of transparent covers are equipped with recessed locations t
• Smart terminal design
• Easy in-system connection access

Specifications:

• Grid size: 1 x 1.5
• Maximum Current1): N/A
• Max. Voltage: 50V
• Connection stud size: M8

• Dimensions: (L) 75 x (W) 50 x (H) 64.5 mm
