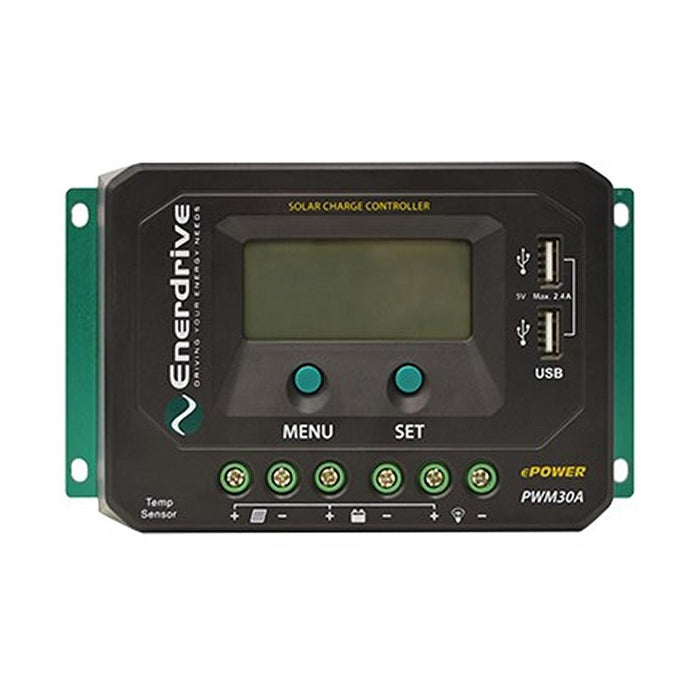

Enerdrive PWM Solar Controller - 12/24V 30A

 Enerdrive's 30A PWM solar regulator can handle up to 450 Watts of solar power and up to 30 amps of array current.

It protects the battery from overcharge and discharge and also auto detects between 12 or 24v. Monitoring the system is easy via the back light LCD display.

EN43030

Usually available 24 hours in-store after purchase

Features:

• Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
• Selectable battery type Sealed, Flooded & Gel
• 2 x USB Outputs 2.4A
• Full output operation up to 55oC
• Temperature compensation
• High precision on voltage set point
• Wall mountable

• 3-year warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications

Specifications:

• Battery Voltage Input: 12 / 24 VDC
• Max PV Panel Open-Circuit Voltage: 12V – 20 VOC / 24V – 50 VOC
• Maximum Charge Current: 30A
• Maximum Load Current: 30A
• Operational Current (No Load & No PV): 18 mA (12V), 14.5 mA (24V)

• Battery Type: Sealed (Default) / Gel / Flooded
• Bulk / Absorption Charging Voltage: Sealed 14.4V / Gel 14.2V / Flooded 14.6V
• Equalize Charging Voltage: Sealed 14.4V / Gel 14.2V / Flooded 14.8V
• Float Charging Voltage: 13.8V (Sealed / Gel / Flooded)
• Low Voltage Disconnect: 11.1V
• Low Voltage Reconnect: 12.6V

• Temperature Compensation Coefficient:
-18 mV/°C >25°C @ 12V / -36 mV/°C >25°C @ 24V

• Charge Circuit Voltage Drop: 0.29V
• Discharge Circuit Voltage Drop: 0.16V
• Battery Charger Stages: 2-Step (Bulk & Float)

• LCD Temperature Range: -20°C to +70°C
• Operating Temperature: -25°C to +55°C
• Relative Humidity: 95% N.C.
• Enclosure: IP30
• Grounding: Common Positive
• USB Output: 5VDC / 2.4A (Total)

• Dimensions (L × W × H): 181 × 101 × 60 mm
• Weight: 0.55 kg
• Terminals: 16 mm² (6 AWG)
