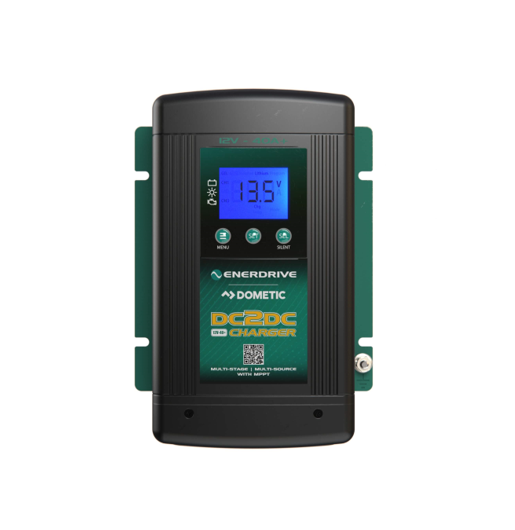

Enerdrive MPPT Solar Controller DC-DC Battery Charger 12V 40A

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, 2-in-1 multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

EN3DC40+/12

Usually available 24 hours in-store after purchase

Features:

• Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output

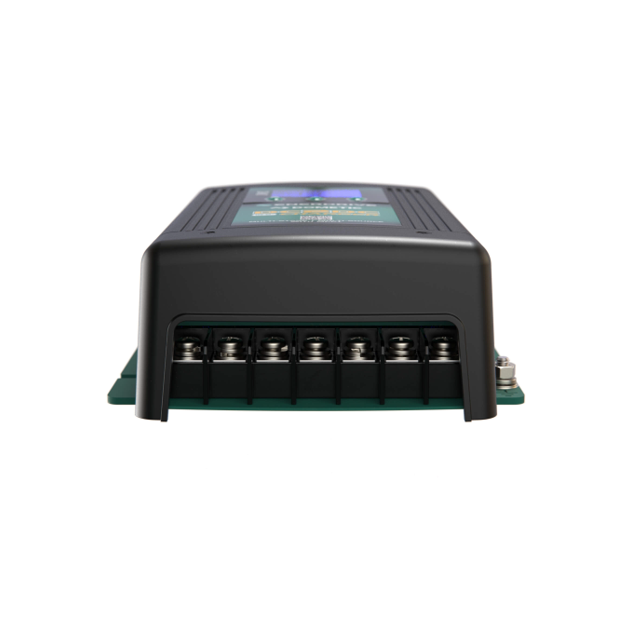

• DC M6 screw terminals
• A dedicated Maximum Power Point (MPPT) solar regulator
• Specific lithium charging profile available
• Vehicle input allows for 12V and a maximum solar input of 45V/800W
• 30A output up to 40+°C with thermo controlled fan cooling
• Fully programmable LCD display
• Temperature sensor included with charger

• 5-year warranty

Suitable for:

• Recreational vehicles
• Service vehicles
• Maritime applications

Multistage Charging Process:

Stage 1 – Bulk or Boost charge

Stage 2 – Absorption Charge

Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level.

Specifications:

• Output Voltage: 12V Nominal (8.0V min)
• Output Current (Maximum): 40-50A
• Output Power: 775W
• Charger DC Output (CH1):
• Selectable Battery Type: Gel, AGM, Flooded, Lithium
• Charger Voltage Range: 13.8V – 15.5V
• Float Voltage Range: 13.0-13.8V
• Charger Current (User Selectable): 5/10/15/20/25/30/35/40/45/50A (default 40A)
• Equalize Voltage (Flooded Battery): 15.5V
• Equalize Charging Current: 10% of bulk current setting
• Charging Control: 2 stage / 3 stage selectable (default 3 stage)
• DC Output Bank: Single
• Current Draw from CH1 When Not Operating: ≤50 mA
• Battery Temperature Setting: Low / Normal / High (Battery Temperature Sensor Standard)
• Efficiency: 95%

• INPUT Rating (CH2 – MPPT Solar):
• Input Voltage: 14.5 – 45VOC
• Maximum Solar Input:
  • ≤23V input: 500W (600W allowable)
  • ≥37.5V–45V input: 800W (1000W allowable)
• INPUT Rating (CH3 – Start/Alternator):
• Input Voltage: 10.5 – 16VDC / 21 – 32VDC

• Dimensions: (H)242mm x (W) 172mm x (D) 74mm
• Unit Weight: 1.85kg

• Warranty: 5 years
