Odyssey ODP-AGM49 Performance LN5 AGM Battery - 950CCA 95Ah

The ODYSSEY Performance Series Group 49 battery is designed to fit in popular Jeep®, Dodge®, and some BMW® and Mercedes-Benz® vehicles, while the ODYSSEY Performance Series Group 94R battery is specified for popular Chevrolet®, Jeep and Dodge vehicles.

This model is a Euro height battery otherwise known as DIN88 at 352mm long but is 190mm high (referred to as tall DIN)

Usually available 24 hours in-store after purchase

Features:

• With SAE posts
• Absorbed Glass Mat (AGM) with Thin Plate Pure Lead (TPPL)
• Advanced dual purpose battery for engine start and deep cycle use


• 3 years warranty (T&C apply)

Specifications:

• Voltage: 12V
• Pulse Hot Cranking Amps (PHCA, 5 sec): 1700A
• Cold Cranking Amps (CCA): 950A
• HCA: 1300A
• MCA: 1150A
• 20Hr Nominal Capacity: 95Ah
• 10Hr Nominal Capacity: 85Ah
• Reserve Capacity: 190 minutes
• Terminal Type: SAE ( - + )
• Torque Spec (in-lbs / Nm max): N/A
• Internal Resistance: 4.8 mΩ
• Short Circuit Current: 2650A
• Recommended Minimum Charging Current: 8.5A
• UPC: 635241140774

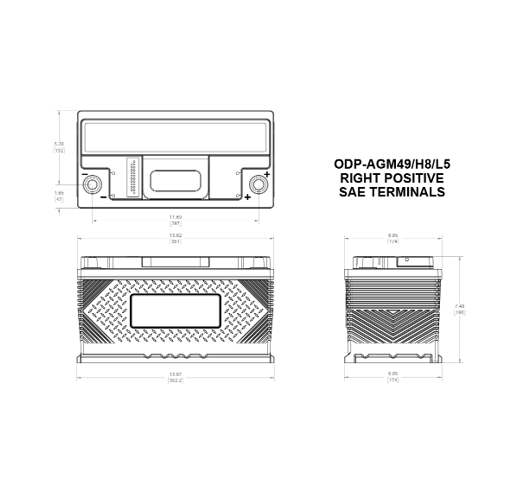

Dimensions and Weight

• Length: 13.9 in / 353 mm
• Width: 6.9 in / 175 mm
• Height (Terminals Included): 7.4 in / 188 mm

• Height (Container): 7.5 in / 191 mm
• Weight: 62.8 lbs / 28.5 kg
• Operating Temperature Range: -40°F / -40°C to 140°F / 60°C

Charging and Self-Discharge

• Cyclic Charge Voltage : 14.4 - 14.8V @ 25ºC
• Float Charge Voltage : 13.5 - 13.8V @ 25ºC
• Charger voltage at 68°F (20°C) : 14.4V to 14.8V
• Self-discharge per month at 68°F (20°C) :  1.25%
• Self-discharge per month at 104°F (40°C) : 5%
  80% depth of discharge cycles 400

Warranty:

• 2 years for Auxiliary Power Unit (APU) and other non-engine start cycling applications.
• 3 years for commercial, industrial, marine and automotive applications.


Made in USA
