Enerdrive B-TEC LiFePO4 Slim Case Battery - 12V 200Ah

Enerdrive B-TEC 12V 200Ah LiFePO4 Slim Battery in Metal Case

The new 200Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

EPL-200BT-12V-SLIM

Usually available 24 hours in-store after purchase

The B-TEC Slimline battery is capable to be paralleled to a second B-TEC battery of the same size.

Features:

• 5 years warranty
• >2000 Charge Cycles @ 80% DOD
• Bluetooth Monitoring via Phone App
• Built-in Reset Button making re-starting a flat battery a breeze
• 530 x 83 x 600mm

• Water resistant metal casing meeting IP52 rating

> Smart Phone Monitoring System:

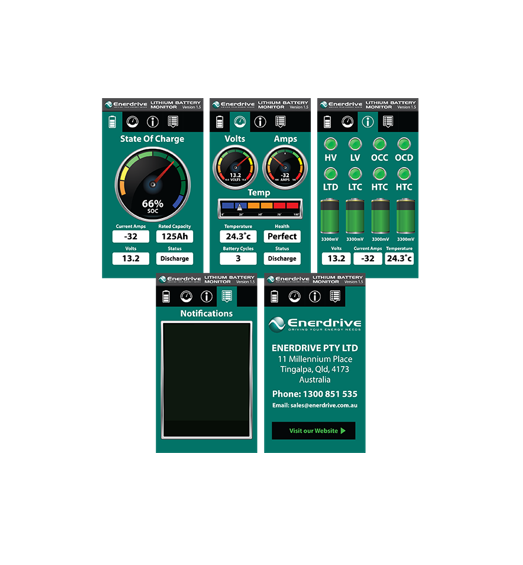

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

> Battery Management System:

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

> Size & Weight Savings:

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%)).

Specifications :

• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Cycle Life (DOD – 80% under controlled conditions): ≥ 2000 Cycles
• Battery Charge Temperature: 0 ̴ 45°C
• Normal Charge Voltage (CV/CC): 14.20 ̴ 14.60V
• Standby (Float) Voltage: 13.50 ̴ 13.80V
• Maximum Charge Current: 150A @ 25°C for 30 mins
• Recommended Charge Current for Maximum Life: 60A–120A
• Battery Discharge Temperature: -20 ̴ 60°C
• Battery Output Voltage Range: 11.00 ̴ 14.60V
• Maximum Discharge Current: 250A @ 25°C ±5°C for 30 mins
• Pulse Discharge Current: 450A for 1.0s
• Discharge Cut-off Voltage: ≤11.20V

Circuit Protection:
The battery is equipped with a LiFePO₄ Battery Management System (BMS) that monitors and optimizes each prismatic cell during charge and discharge. It protects against overcharge, over-discharge, and short circuit, ensuring safe and accurate operation.

• Over-charge Protection Per Cell: 3.75V ± 0.03V
• Over-charge Release Per Cell: 3.60V ± 0.05V
• Over-charge Release Method: Discharge below release voltage
• Over-discharge Protection Per Cell: 2.80V ± 0.05V
• Over-discharge Release Per Cell: 3.20V ± 0.05V
• Over-discharge Release Method: Apply charge/voltage ≥12.8V
• Discharge Over Current: 280A for 25s – 400A for 3.5s
• Protection Reset Time: 5s Auto Release
• Over Current Release Method: Disconnect load
• Battery Discharge Over Temperature:

• Protection at 65°C ± 5°C
• Release at 50°C ± 5°C

• • Battery Charge Over Temperature:
    • Protection at 55°C ± 5°C
    • Release at 45°C ± 5°C
• Short Circuit Protection: Auto release after 5s
• Dimensions:

• Length: 530mm
• Width: 83mm
• Height: 600mm

• Weight: Approx. 30kg
• Case Construction: Powder Coated Zinc Plate
• Temperature & Humidity Range:

• ≤ 30 days: -20°C ̴ 60°C, 5 ̴ 75% RH
• ≥ 30 days: -10°C ̴ 45°C, 5 ̴ 75% RH

• Self-discharge Rate: ≤ 3% per month

• Warranty: 5 years

Note:

• For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS
• The 200Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
• This product is designed for internal use ONLY.

With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
